Combined simultaneous FDG-PET/MRI with T1 and T2 mapping as an imaging biomarker for the diagnosis and prognosis of suspected cardiac sarcoidosis

Abstract

Purpose

To evaluate the diagnostic and prognostic significance of combined cardiac 18F-fluorodeoxyglucose (FDG) PET/MRI with T1/T2 mapping in the evaluation of suspected cardiac sarcoidosis.

Methods

Patients with suspected cardiac sarcoidosis were prospectively enrolled for cardiac 18F-FDG PET/MRI, including late gadolinium enhancement (LGE) and T1/T2 mapping with calculation of extracellular volume (ECV). The final diagnosis of cardiac sarcoidosis was established using modified JMHW guidelines. Major adverse cardiac events (MACE) were assessed as a composite of cardiovascular death, ventricular tachyarrhythmia, bradyarrhythmia, cardiac transplantation or heart failure. Statistical analysis included Cox proportional hazard models.

Results

Forty-two patients (53 ± 13 years, 67% male) were evaluated, 13 (31%) with a final diagnosis of cardiac sarcoidosis. Among patients with cardiac sarcoidosis, 100% of patients had at least one abnormality on PET/MRI: FDG uptake in 69%, LGE in 100%, elevated T1 and ECV in 100%, and elevated T2 in 46%. FDG uptake co-localized with LGE in 69% of patients with cardiac sarcoidosis compared to 24% of those without, p = 0.014. Diagnostic specificity for cardiac sarcoidosis was highest for FDG uptake (69%), elevated T2 (79%), and FDG uptake co-localizing with LGE (76%). Diagnostic sensitivity was highest for LGE, elevated T1 and ECV (100%). After median follow-up duration of 634 days, 13 patients experienced MACE. All patients who experienced MACE had LGE, elevated T1 and elevated ECV. FDG uptake (HR 14.7, p = 0.002), elevated T2 (HR 9.0, p = 0.002) and native T1 (HR 1.1 per 10 ms increase, p = 0.044) were significant predictors of MACE even after adjusting for left ventricular ejection fraction and immune suppression treatment. The presence of FDG uptake co-localizing with LGE had the highest diagnostic performance overall (AUC 0.73) and was the best predictor of MACE based on model goodness of fit (HR 14.9, p = 0.001).

Conclusions

Combined cardiac FDG-PET/MRI with T1/T2 mapping provides complementary diagnostic information and predicts MACE in patients with suspected cardiac sarcoidosis.

Introduction

Sarcoidosis is a multisystem disease characterized by development and accumulation of non-caseating granulomas in various organs. The most common sites of involvement are the lungs and thoracic lymph nodes (Iannuzzi et al. 2007). However, sarcoidosis can also involve the heart and other organs (Okada et al. 2018). Patients with cardiac sarcoidosis have a worse prognosis compared to patients with sarcoidosis without cardiac involvement (Birnie et al. 2016). Most deaths are due to ventricular arrhythmias, high-degree heart block, or heart failure resulting from progressive granulomatous infiltration or presence of myocardial fibrosis (Birnie et al. 2016; Grunewald et al. 2019).

Early identification of cardiac sarcoidosis is important given the risk of significant morbidity and mortality if untreated and the availability of therapeutic options. However, cardiac sarcoidosis remains a diagnostic challenge (Perry and Vuitch 1995; Rybicki et al. 1997). Endomyocardial biopsy remains the reference standard to confirm cardiac involvement, although the diagnostic yield is less than 25% (Vignaux 2005). Therefore, a positive biopsy result is definitive, whereas a negative result does not exclude this disease. Expert consensus criteria have also been proposed for diagnosing cardiac sarcoidosis, although these may also have limited diagnostic accuracy (Hulten et al. 2016). There is no reliable serum biomarker to confirm the diagnosis of cardiac sarcoidosis or assess response to therapy, and therefore clinicians are reliant on imaging for assessment of cardiac involvement and disease activity.

Advanced cardiac imaging techniques, including both cardiac magnetic resonance imaging (MRI) (Patel et al. 2009; Smedema et al. 2005) and 18F-labelled fluoro-2-deoxyglucose (FDG) positron emission tomography (PET) (Skali et al. 2013a; Youssef et al. 2012), are useful noninvasive tests for assessment of cardiac sarcoidosis. However, the best imaging modality for assessment of patients with suspected cardiac sarcoidosis has not yet been established (Gutberlet 2020). The recent development of integrated PET/MRI scanners might improve diagnosis and risk stratification of patients with cardiac sarcoidosis (Rischpler et al. 2013). Therefore, the objective of this study was to evaluate the diagnostic and prognostic significance of combined cardiac 18F-FDG PET/MRI in the evaluation of suspected cardiac sarcoidosis. We hypothesized that combined 18F-FDG PET/MRI with T1 and T2 mapping would provide complementary diagnostic information and predict development of future adverse cardiac events in patients with suspected cardiac sarcoidosis.

Methods

This prospective cohort study was approved by the institutional research ethics board. Written informed consent was obtained from all participants. Between October 2016 and May 2021, consecutive patients with known or suspected cardiac sarcoidosis ≥ 18 years of age referred for clinically indicated PET/CT were recruited. Exclusion criteria included contraindication to PET/MRI, implanted cardiac pacemaker and defibrillator devices, and inability/unwillingness to follow the required diet instructions. Clinical data were obtained from patient history at the time of recruitment, telephone follow-up and the electronic patient record. Patients were classified as having a final diagnosis of cardiac sarcoidosis or not using the 2006 revised Japanese Ministry of Health and Welfare (JMHW) guideline as the reference standard, with exclusion of LGE as a minor criterion in order to evaluate the diagnostic accuracy of this imaging test in the study (Japanese Ministry Health and Welfare 2007).

Primary and secondary outcomes

For evaluation of prognostic value, only new events from the time of PET/MRI were considered. The primary outcome of major adverse cardiac events (MACE) was defined as composite of cardiovascular death, aborted sudden cardiac death (either ventricular tachyarrhythmia leading to appropriate cardioverter defibrillator discharge or successfully resuscitated cardiac arrest), symptomatic ventricular tachyarrhythmia leading to cardioverter defibrillator implantation (ICD), symptomatic bradyarrhythmia leading to pacemaker implantation, cardiac transplantation, or hospitalization for decompensated heart failure. The secondary outcome of non-sustained ventricular tachycardia (NSVT) was defined as 3 or more consecutive beats arising below the atrioventricular node with an RR interval of > 100 beats/minute lasting < 30 s. Patients who did not experience an adverse event were censored at the time of their last clinical follow-up.

PET/MRI acquisition

Patients were provided with detailed preparation instructions in order to suppress physiologic myocardial glucose uptake, including a high fat, high protein, low carbohydrate diet for the entire day before PET/MRI and a complete fast other than water for the immediate 12-h period prior to imaging (Williams and Kolodny 2008; Okumura et al. 2004). Adherence to the diet instructions was confirmed through direct questioning and evaluation of blood glucose. PET/MRI was performed 167 ± 38 min after intravenous administration of 426 ± 64 MBq of 18F-FDG using a 3 T scanner (Biograph mMR, Siemens Healthineers, Erlangen, Germany). The interval between injection and imaging was longer than typical clinical protocols due to an intervening clinical PET/CT scan. Blood glucose immediately prior to FDG injection was 5.3 ± 1.5 mmol/L. The cardiac MRI protocol included long-axis (2-, 3-, 4-chamber) and a stack of short-axis balanced cine steady-state free precession (SSFP) slices; T1 mapping using a modified Look-Locker Inversion Recovery (MOLLI) technique at basal, mid and apical short-axis locations, pre- and 15 min post-contrast (0.15 mmol/kg of gadolinium-based contrast agent, Gadobutrol, Bayer Healthcare); T2 mapping using a fast low-angle shot (FLASH) technique at matching short-axis locations pre-contrast; and phase-sensitive inversion recovery late gadolinium-enhanced (LGE) technique starting 12 min after contrast administration. Pixel-based T1 and T2 maps were automatically generated on the scanner with application of inline motion correction algorithms. List mode PET acquisition occurred simultaneously with the MRI examination in one bed position centered over the heart (10 min), with ECG gating and three-dimensional image reconstruction using ordered subset expectation maximization (three iterations, 21 subsets, point spread function, Gaussian filter, 4 mm FWHM). A 2-point Dixon scan was acquired for attenuation correction, and a four-compartment model attenuation map was calculated including air, fat, water and tissue.

PET/MRI analysis

PET/MRI studies were analyzed blinded to all clinical information by two experienced fellowship trained cardiac imagers. PET and MRI images were fused by translating and rotating PET images onto the MRI coordinate system. PET/MRI findings were evaluated globally and according to the AHA 17-segment model (Cerqueira et al. 2002). Myocardial FDG uptake was categorized as none, diffuse, focal or focal-on-diffuse. Focal or focal-on-diffuse patterns of myocardial FDG uptake were considered positive, and none or diffuse FDG uptake were considered negative (Ohira et al. 2011). FDG uptake was quantified using cardiac metabolic volume (CMV), which was assessed as the volume of myocardium with a SUV intensity above a threshold ratio of 1.2 of left ventricular blood pool to cardiac maximum SUV (OsiriX MD v.12.0.1, Bernex, Switzerland) (Ahmadian et al. 2014). Ventricular volumes, function and mass were assessed as per established standards (Circle cmr42; Circle Cardiovascular Imaging, Calgary, Canada) (Schulz-Menger et al. 2020). Global and segmental LGE was evaluated visually. The predominant pattern of LGE was classified as subendocardial, mid-wall, subepicardial or transmural (Cummings et al. 2009). Global and segmental T1 and T2 relaxation times were assessed by contouring endocardial and epicardial borders on all short-axis images applying a 15% offset adjustment to eliminate in-plane partial volume artifacts. Extracellular volume (ECV) was calculated with input of pre- and post-contrast T1 and hematocrit (Robison et al. 2018). Maximum native T1, T2 and ECV were defined as the highest segmental value for each parameter, and the values were categorized as normal/abnormal based on established scanner-specific local reference ranges (elevated T2 > 45 ms; elevated T1 > 1286 ms; and elevated ECV > 30%). Myocardial inflammation was assessed using cardiac MRI findings by applying the updated Lake Louise Criteria (Ferreira et al. 2018). All PET/MRI images were evaluated for the presence of extra-cardiac disease including thoracic lymphadenopathy, pulmonary opacities and extra-cardiac thoracic FDG uptake typical in sarcoidosis (for example, in thoracic lymph nodes and in the lungs). Any abnormality on MRI was defined as LGE presence, elevated T2, elevated T1 and/or elevated ECV. Any abnormality on PET/MRI was defined as focal FDG uptake, LGE presence, elevated T2, elevated T1 and/or elevated ECV. PET/MRI findings were considered to co-localize when abnormalities were present in the same myocardial segment based on the AHA 17-segment model (for example, focal FDG uptake and LGE).

Statistical analysis

Statistical analysis was performed using a commercially available software package, STATA v14.1 (StataCorp, College Station, Texas). A two-tailed p value of < 0.05 was considered statistically significant. All continuous data were tested for normal distribution using the Shapiro–Wilk test. Comparisons between groups were made by independent samples t test for continuous variables with normal distribution, Wilcoxon rank-sum test for continuous variables with non-normal distribution, and Fisher’s exact test for categorical variables. The diagnostic performance of PET/MRI findings was evaluated including sensitivity, specificity and area under the curve (AUC) using receiver operating characteristic analysis. In addition to evaluation of diagnostic test performance in the entire cohort, a sensitivity analysis was also performed, restricting the evaluation to the subgroup of patients not treated with immune suppression therapy prior to PET/MRI. Time-to-event survival analysis using Cox proportional hazard models was used to examine the association between PET/MRI findings and primary and secondary outcomes, both in univariable analysis and in multivariable analysis adjusting for left ventricular ejection fraction (LVEF) and anti-inflammatory therapy. Incremental value was assessed using nested models and the likelihood ratio test. Kaplan–Meier survival curves were calculated for visualization of cumulative event-free survival.

Results

Forty-two patients (53 ± 13 years, 67% male) were included in this study (Table 1). The prevalence of cardiac sarcoidosis was 31% (n = 13). Twenty patients (48%) had biopsy-confirmed extra-cardiac sarcoidosis, and 6 (14%) were treated with immune suppression therapy at the time of PET/MRI (of whom 3 were positive on PET and 3 were negative on PET).

Table 1 Baseline clinical parameters

PET findings

FDG uptake on PET was positive in 9/13 (69%) patients with cardiac sarcoidosis compared to 9/29 (31%) without (Table 2). Among patients without cardiac sarcoidosis with focal FDG uptake, the final diagnosis was myocarditis in 2 and non-ischemic or other inflammatory cardiomyopathy in 7. The pattern of FDG uptake was focal in 17 patients (40%) and focal on diffuse in one patient (2%). Only one patient (2%) without cardiac sarcoidosis had diffuse uptake likely due to inadequate physiologic myocardial glucose suppression. CMV and number of FDG-positive segments were significantly higher in patients with cardiac sarcoidosis compared to those without (median 39 cm3 vs. 16 cm3, p = 0.019 and median 11 vs. 5 segments, p = 0.031, respectively). The most common segments with focal FDG uptake were the basal inferolateral wall (38% for patients with and without cardiac sarcoidosis), basal anterior septum (38% in patients with cardiac sarcoidosis and 28% in those without) and mid-inferolateral wall (23% in patients with cardiac sarcoidosis and 28% in those without).

Table 2 Combined PET/MRI findings

Cardiac MRI findings

Overall, 79% of patients had at least one MRI abnormality (100% of those with cardiac sarcoidosis vs. 69% of those without). There was no significant difference in left ventricular size, function or mass between groups. Patients with cardiac sarcoidosis had higher prevalence of LGE and higher maximum segmental T1, T2 and ECV compared to those without. Maximum segmental native T1 and ECV were elevated in all patients with LGE. The pattern of LGE in patients with cardiac sarcoidosis was most commonly mid-wall (85% vs. 41% in patients without cardiac sarcoidosis). No patient had a pattern of LGE consistent with myocardial infarction. The most common segments with LGE were the basal anterior septum (92% in patients with cardiac sarcoidosis and 34% in those without) and basal inferolateral wall (61% in patients with cardiac sarcoidosis and 34% in those without). All patients with elevated T2 had corresponding LGE and elevated T1/ECV and met updated Lake Louise criteria for myocardial inflammation (Ferreira et al. 2018).

Combined PET/MRI findings

Overall, 81% of patients had at least one abnormality on combined PET/MRI (100% in patients with cardiac sarcoidosis vs. 72% in those without, p = 0.043). Among patients with cardiac sarcoidosis, 4 patients (31%) were negative on PET but positive on MRI and 9 patients (69%) were positive on both PET and MRI (Figs. 1 and 2). No patient with cardiac sarcoidosis was negative on both PET and MRI or positive on PET but negative on MRI.

Fig. 1
figure 1

Combined 18F-FDG PET/MRI images in a 67-year-old male with cardiac and extra-cardiac sarcoidosis. Mid-ventricular short-axis native T1 map (A), native T2 map (B), late gadolinium-enhanced (LGE) image (C), and fused 18F-FDG PET and LGE image (D) demonstrate high T1 (green arrow), high T2 (black arrow), mid-wall LGE (red arrow) and co-localizing focal FDG uptake (white arrow) at the mid-anterior wall. There was extra-cardiac FDG uptake in mediastinal and hilar lymph nodes (not shown). The study was positive on both PET and MRI, likely reflecting active cardiac sarcoidosis with myocardial inflammation

Fig. 2
figure 2

Combined 18F-FDG PET/MRI images in a 72-year-old male with cardiac and extra-cardiac sarcoidosis. Basal short-axis native T1 map (A), native T2 map (B), late gadolinium-enhanced (LGE) image (C), and fused 18F-FDG PET and LGE image (D) demonstrate slightly elevated native T1 (green arrow) and corresponding mid-wall LGE (red arrow) at the basal inferolateral wall. There was no corresponding elevation of native T2 or focal FDG uptake (white arrow). There was extra-cardiac FDG uptake in mediastinal and hilar lymph nodes (not shown) and in the lung parenchyma (blue arrow) in keeping with extra-cardiac sarcoidosis. With respect to the heart, the study was negative on PET and positive on MRI, likely reflecting chronic, burnt-out cardiac sarcoidosis

Focal FDG uptake co-localized with LGE and with elevated T1/ECV in at least one myocardial segment in 69% of patients with cardiac sarcoidosis (vs. 24% of those without cardiac sarcoidosis, p = 0.014) and co-localized with elevated T2 in 46% patients with cardiac sarcoidosis (vs. 17% of those without cardiac sarcoidosis, p = 0.07) (Fig. 3). Focal FDG uptake was present but did not co-localize with LGE in two patients (5%, both without cardiac sarcoidosis) and did not co-localize with elevated T2 in 7 patients (14%, 3 with cardiac sarcoidosis and 4 without).

Fig. 3
figure 3

Bar charts for PET and MRI findings by patient group. CMV (A), focal FDG uptake (B), LGE presence (C) and co-localized FDG uptake and LGE presence (D)

Diagnostic accuracy

In the entire cohort, diagnostic specificity for cardiac sarcoidosis was highest for focal FDG uptake (69%), elevated T2 (79%), co-localizing focal FDG uptake with LGE or with elevated T1 (76%), and co-localizing focal FDG uptake with elevated T2 (83%) (Table 3). Specificity was significantly higher for co-localizing focal FDG uptake and elevated T2 compared to focal FDG uptake alone (p = 0.045). Diagnostic sensitivity was highest for LGE presence, elevated T1 and elevated ECV (all with 100% sensitivity but low specificity). Overall diagnostic performance was highest for focal FDG uptake co-localizing with LGE or with elevated T1.

Table 3 Diagnostic accuracy of PET/MRI findings for cardiac sarcoidosis

In the subset of patients not treated with immune suppressive therapy, sensitivity, negative predictive value and AUC were slightly higher for several PET/MRI parameters, compared with analysis of the entire cohort.

Prognostic value

After median follow-up duration of 634 ± 380 days, 13 patients experienced MACE (incidence rate 22%/year, non-mutually exclusive events: 3 cardiac deaths, 1 aborted sudden cardiac death, 8 symptomatic ventricular tachyarrhythmias leading to ICD placement, 1 cardiac transplantation and 2 hospitalization for heart failure) and 12 patients experienced NSVT (incidence rate 20%/year).

Patients with focal FDG uptake on PET had 11 times higher risk of MACE compared to those without (HR 10.8, p = 0.003) (Table 4). The risk increased with the extent of FDG uptake, with a one segment increase in FDG uptake associated with a 23% increase in the risk of MACE. Annualized MACE rates were significantly higher in patients with positive FDG uptake (51%) compared to those without FDG uptake (10%), p = 0.002 (Fig. 4).

Table 4 Univariable and multivariable time-to-event survival analysis for primary and secondary end-points
Fig. 4
figure 4

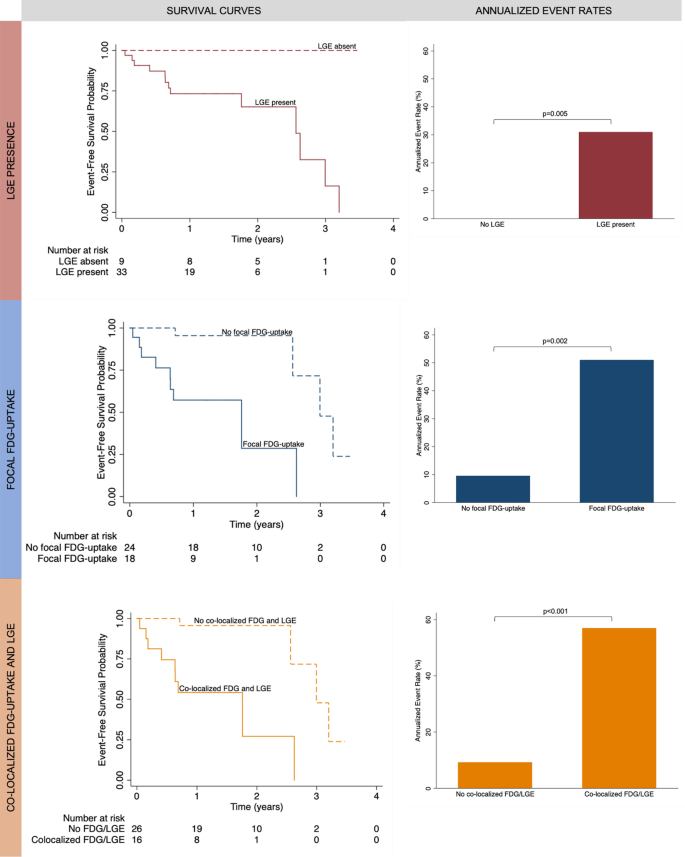

Kaplan–Meier survival probability curves for the primary end-point of major adverse cardiac events (MACE) demonstrate that patients with late gadolinium enhancement (LGE), focal FDG uptake, and co-localized focal FDG uptake and LGE have worse event-free survival compared to patients without those findings. The number of patients at risk is shown at the bottom of the figures. Annualized event rates were higher in patients with LGE, focal FDG uptake, and co-localized focal FDG uptake and LGE

All patients who experienced MACE had LGE, elevated native T1 and elevated ECV. Annualized MACE rates dichotomized by the presence and absence of LGE were 31% and 0%, respectively. Patients with elevated T2 had 8 times higher risk of MACE compared to those without (HR 8.2, p = 0.002). A 10 ms increase in native T1 was associated with an 8% increase in the risk of MACE, a 1 ms increase in native T2 was associated with a 14% increase in the risk of MACE, and a 1% increase in ECV was associated with an 8% increase in the risk of MACE.

In nested models with focal FDG uptake, model fit for MACE was improved by the addition of LGE extent (χ2(df = 1) = 12.2, p < 0.001), indicating that LGE extent on MRI has independent and incremental value in predicting the risk of MACE beyond FDG uptake on PET. The presence of focal FDG uptake co-localizing with LGE or with elevated T1 was associated with 12 times higher risk of MACE compared to patients without and was the best predictor of MACE among the imaging findings evaluated based on model goodness of fit. Annualized MACE rates were significantly higher in patients with co-localizing FDG uptake and LGE (57%) compared to those without FDG uptake (9%), p < 0.001.

In multivariable analysis, combined PET/MRI findings remained as significant predictors of MACE even after adjusting for LVEF and anti-inflammatory therapy, including FDG uptake (HR 14.7, p = 0.002), elevated T2 (HR 9.0, p = 0.002) and FDG uptake co-localizing with LGE (HR 14.9, p = 0.001).

Discussion

Cardiac involvement in patients with sarcoidosis is associated with poor prognosis. However, early identification and risk stratification are challenging due to non-specific clinical manifestations and patchy myocardial involvement which can limit the sensitivity of diagnostic tests including endomyocardial biopsy. We have shown that FDG-PET/MRI provides complementary information in patients with suspected cardiac sarcoidosis, combining the strengths of both imaging modalities in a single comprehensive study that allows for co-registration of accurate and strongly prognostic imaging data. Key strengths of each imaging modality include characterization of myocardial tissue and quantification of ventricular function on MRI and assessment of metabolic processes such as inflammation on PET (Sanchez Tijmes et al. 2021). Focal FDG uptake on PET and elevated T2 on MRI had the highest diagnostic specificity among the individual imaging parameters evaluated and are most useful in ruling in cardiac sarcoidosis when present. Cardiac MRI tissue characterization findings including LGE, elevated T1 and elevated ECV had 100% sensitivity and are therefore useful in ruling out cardiac sarcoidosis when absent. Overall diagnostic performance was highest for focal FDG uptake that co-localized with LGE or with elevated T1, highlighting the complementary information provided by combined PET/MRI compared to either modality alone. Cardiac PET/MRI findings also have strong prognostic value, particularly when evaluated together as a combined modality. The presence of focal FDG uptake co-localizing with LGE was the best predictor of MACE among the imaging findings evaluated.

In cardiac sarcoidosis, segments that are positive for LGE on MRI but negative for focal FDG uptake on PET likely reflect myocardial scarring/fibrosis in the setting of chronic disease without active inflammation. Compared to LGE, focal FDG uptake on PET is a more specific marker of active disease reflecting metabolically active immune cells and typically resolves or regresses following anti-inflammatory treatment (Coulden et al. 2020). FDG-PET is particularly well suited for investigation of cardiac sarcoidosis due to the presence of macrophage-dense regions in areas of active sarcoidosis (Li et al. 2020). Determining the acuity of cardiac involvement in patients with cardiac sarcoidosis is imperative, as data suggest that steroid or other anti-inflammatory therapy should be administered to patients with active inflammation before left ventricular systolic function declines (Skali et al. 2013b). Identification of chronic cardiac involvement, even without active inflammation, is also important for risk stratification, as fibrosis is strongly associated with adverse cardiac events including ventricular arrhythmias (Flamée et al. 2020). Patients with extensive myocardial scar by LGE or elevated T1/ECV may warrant closer follow-up and consideration of prophylactic ICD implantation (Al-Khatib et al. 2018).

Only a few prior studies have investigated the performance of combined PET/MRI in cardiac sarcoidosis, with varying imaging and analysis approaches (Hanneman et al. 2017; Dweck et al. 2017; Wicks et al. 2018). To our knowledge, this study is the first to describe the diagnostic and prognostic value of combined cardiac PET/MRI in patients with suspected cardiac sarcoidosis with an imaging protocol that includes T1 and T2 mapping. Our results are concordant with the study by Wicks et al., which found that combined abnormalities on both PET and MRI were the strongest predictor of MACE compared to the absence of any imaging abnormalities or singular abnormalities on either PET or MRI (Wicks et al. 2018). However, in their study, 22% of patients had PET abnormalities with no MRI abnormalities, while in our study no patients with cardiac sarcoidosis were positive on PET but negative on MRI. This could be related to differences in the classification of PET abnormalities between studies, as they included diffuse patterns of FDG uptake in their analysis. Diffuse FDG uptake can be seen in the setting of severe diffuse active cardiac inflammation but is more commonly seen in the context of inadequate dietary preparation (Ohira et al. 2011). In our study, only a single patient had diffuse FDG uptake which likely reflected physiologic myocardial glucose uptake as all MRI parameters were normal (including T2) and the patient subsequently endorsed incomplete adherence to the diet instructions. The proportion of patients with extra-cardiac disease was lower in our study compared to others which is likely related to inclusion criteria as we included patients with suspected isolated cardiac sarcoidosis in addition to those with known extra-cardiac disease (Hanneman et al. 2017; Dweck et al. 2017; Wicks et al. 2018).

Diagnostic specificity was higher for all imaging parameters evaluated when our analysis was restricted to the subgroup of patients with known extra-cardiac sarcoidosis. This highlights the fact that diagnostic accuracy is dependent on the patient sample evaluated and is expected to be higher when patients with more severe disease (such as patients with advanced, biopsy-proven sarcoidosis) are compared to a control group with no disease (such as patients with extra-cardiac sarcoidosis with no evidence of cardiac disease). We included a consecutive sample of patients with suspected cardiac sarcoidosis who had a range of disease severity in our study, which accounts for more modest diagnostic performance compared to other studies that evaluated patients with cardiac sarcoidosis compared to healthy controls (Puntmann et al. 2017) or restricted study inclusion to only patients with biopsy-proven disease (Smedema et al. 2005). Importantly, FDG uptake is not specific to cardiac sarcoidosis and can be seen in the setting of other causes of myocardial inflammation including myocarditis (Hanneman et al. 2017; Chen and Jeudy 2019).

There is conflicting information on the prognostic significance of FDG uptake in cardiac sarcoidosis in the literature to date, with some studies demonstrating an association between FDG abnormalities and adverse cardiac events (Blankstein et al. 2014), while other studies have not (Wicks et al. 2018; Mehta et al. 2008). Both the presence and extent of FDG uptake were associated with MACE and NSVT in our cohort of patients with suspected cardiac sarcoidosis. Lack of a significant association of PET abnormalities with adverse events in prior studies could be related to differences in the classification and analysis of PET findings and shorter follow-up duration (Wicks et al. 2018; Mehta et al. 2008). We also found that cardiac MRI findings including LGE, native T1, native T2, ECV and LVEF were associated with MACE and NSVT. All patients who experienced an adverse cardiac event had LGE, elevated native T1 and elevated ECV. Our results are consistent with a prior meta-analysis that found that LGE was a strong predictor of adverse events in cardiac sarcoidosis, with a relative risk of cardiovascular mortality of 10.7 (Hulten et al. 2016). Myocardial fibrosis/scar secondary to inflammation from sarcoid granulomas is thought to be the dominant substrate for arrhythmias, including ventricular tachycardia, in cardiac sarcoidosis (Kumar et al. 2015). In our study, FDG uptake co-localizing with LGE or with elevated T1 was the best predictor of MACE and NSVT. MRI findings had incremental prognostic value compared to PET findings alone, highlighting the strength of combined imaging for prognostic evaluation in this clinically complex disease.

The results of this study have several clinical implications. When available, combined PET/MRI with T1/T2 mapping could improve diagnostic performance and risk stratification of patients with suspected cardiac sarcoidosis compared to either modality alone. FDG uptake on PET is particularly useful to rule in active disease when positive and may also be an important noninvasive biomarker for monitoring response to anti-inflammatory therapy (Coulden et al. 2020). Cardiac MRI findings are more sensitive and are therefore helpful in ruling out cardiac sarcoidosis when negative. Combined PET/MRI including T2 mapping may also be useful in the setting of diffuse FDG uptake to distinguish between physiologic FDG uptake in the setting of inadequate diet preparation (in which case T2 would be expected to be normal) and diffuse myocardial inflammation (in which case T2 would be expected to be elevated). Given that elevated native T1 was concordant with the presence of LGE, this technique may be particularly useful in patients with a contraindication to administration of gadolinium-based contrast which is required for LGE imaging. Combined PET/MRI findings are associated with adverse cardiac event risk, and therefore detection of these imaging biomarkers could impact patient management by supporting an indication for prophylactic defibrillator implantation or escalation of medical therapy.

Our study has several limitations including lack of a biopsy reference standard for cardiac sarcoidosis, lack of perfusion imaging and a modest sample size. We used modified JMHW criteria as the reference standard in our study, which has been utilized in most diagnostic accuracy studies to date, although these criteria have not been validated against any other standard. It is possible that select patients could have been misclassified, particularly those that did not meet JMHW criteria but had evidence of focal FDG uptake on PET. Although cardiac sarcoidosis is relatively rare, the number of patients included is modest. FDG uptake on PET was not interpreted in the context of perfusion imaging, which could potentially account for the more modest diagnostic performance of PET compared to prior PET/CT studies. However, the focus of this study was on combined PET/MRI findings. The interval between FDG injection and imaging was longer than many clinical protocols which could impact PET imaging findings (Slart et al. 2021). However, compared to oncology indications, a longer interval is acceptable for imaging of inflammation and has been previously demonstrated not to impact PET results in cardiac sarcoidosis (Hanneman et al. 2017). Finally, our evaluation focused on the left ventricular myocardium. Evaluation of the diagnostic and prognostic value of right ventricular abnormalities on PET/MRI could be performed in a separate study. All imaging was performed at a single tertiary referral hospital, and therefore results may not be generalizable to all centers given that PET/MRI scanners are not widely available.

In conclusion, combined cardiac FDG PET/MRI with T1 and T2 mapping provides complementary diagnostic and prognostic information in patients with suspected cardiac sarcoidosis. These data support the necessity for future large, longitudinal follow-up studies to evaluate the value of PET/MRI in assessing response to therapy and to evaluate the independent and incremental prognostic value of imaging findings over clinical parameters.

Availability of data and materials

Not available for sharing.

Abbreviations

AUC:

Area under curve

ECV:

Extracellular volume

FDG:

Fluorodeoxyglucose

LGE:

Late gadolinium enhancement

HR:

Hazard ratio

ICD:

Implantable cardioverter defibrillator

JMHW:

Japanese Ministry of Health and Welfare

MACE:

Major adverse cardiac events

NSVT:

Non-sustained ventricular tachycardia

PET:

Positron emission tomography

References

  1. Ahmadian A, Brogan A, Berman J, Sverdlov AL, Mercier G, Mazzini M et al (2014) Quantitative interpretation of FDG PET/CT with myocardial perfusion imaging increases diagnostic information in the evaluation of cardiac sarcoidosis. J Nucl Cardiol 21:925–939

    Article  Google Scholar

  2. Al-Khatib SM, Stevenson WG, Ackerman MJ, Bryant WJ, Callans DJ, Curtis AB et al (2018) 2017 AHA/ACC/HRS guideline for management of patients with ventricular arrhythmias and the prevention of sudden cardiac death: executive summary: a report of the American College of Cardiology/American Heart Association Task Force on Clinical Practice Guidelines and the Heart Rhythm Society. Circulation 138:e210–e271

    PubMed  Google Scholar

  3. Birnie DH, Nery PB, Ha AC, Beanlands RSB (2016) Cardiac sarcoidosis. J Am Coll Cardiol 68:411–421

    Article  Google Scholar

  4. Blankstein R, Osborne M, Naya M, Waller A, Kim CK, Murthy VL et al (2014) Cardiac positron emission tomography enhances prognostic assessments of patients with suspected cardiac sarcoidosis. J Am Coll Cardiol 63:329–336

    Article  Google Scholar

  5. Cerqueira MD, Weissman NJ, Dilsizian V, Jacobs AK, Kaul S, Laskey WK et al (2002) Standardized myocardial segmentation and nomenclature for tomographic imaging of the heart. A statement for healthcare professionals from the Cardiac Imaging Committee of the Council on Clinical Cardiology of the American Heart Association. Circulation 105:539–42

    Article  Google Scholar

  6. Chen W, Jeudy J (2019) Assessment of myocarditis: cardiac MR, PET/CT, or PET/MR? Curr Cardiol Rep 21:76

    Article  Google Scholar

  7. Coulden RA, Sonnex EP, Abele JT, Crean AM (2020) Utility of FDG PET and Cardiac MRI in Diagnosis and Monitoring of Immunosuppressive Treatment in Cardiac Sarcoidosis. Radiology Cardiothoracic Imaging. 2:e190140

    Article  Google Scholar

  8. Cummings KW, Bhalla S, Javidan-Nejad C, Bierhals AJ, Gutierrez FR, Woodard PK (2009) A pattern-based approach to assessment of delayed enhancement in nonischemic cardiomyopathy at MR imaging. Radiographics 29:89–103

    Article  Google Scholar

  9. Dweck MR, Abgral R, Trivieri MG, Robson PM, Karakatsanis N, Mani V et al (2017) Hybrid magnetic resonance imaging and positron emission tomography with fluorodeoxyglucose to diagnose active cardiac sarcoidosis. JACC Cardiovasc Imaging. 11:94

    Article  Google Scholar

  10. Ferreira VM, Schulz-Menger J, Holmvang G, Kramer CM, Carbone I, Sechtem U et al (2018) Cardiovascular magnetic resonance in nonischemic myocardial inflammation: expert recommendations. J Am Coll Cardiol 72:3158–3176

    Article  Google Scholar

  11. Flamée L, Symons R, Degtiarova G, Dresselaers T, Gheysens O, Wuyts W et al (2020) Prognostic value of cardiovascular magnetic resonance in patients with biopsy-proven systemic sarcoidosis. Eur Radiol 30:3702–3710

    Article  Google Scholar

  12. Grunewald J, Grutters JC, Arkema EV, Saketkoo LA, Moller DR, Müller-Quernheim J (2019) Sarcoidosis. Nat Rev Disease Primers 5:45

    Article  Google Scholar

  13. Gutberlet M (2020) Cardiac MRI and FDG PET in Cardiac Sarcoidosis: Competitors or Collaborators? Radiol Cardiothorac Imaging. 2:e200347

    Article  Google Scholar

  14. Hanneman K, Kadoch M, Guo HH, Jamali M, Quon A, Iagaru A et al (2017) Initial experience with simultaneous 18F-FDG PET/MRI in the evaluation of cardiac sarcoidosis and myocarditis. Clin Nucl Med 42:e328–e334

    Article  Google Scholar

  15. Hulten E, Agarwal V, Cahill M, Cole G, Vita T, Parrish S et al (2016) Presence of late gadolinium enhancement by cardiac magnetic resonance among patients with suspected cardiac sarcoidosis is associated with adverse cardiovascular prognosis: a systematic review and meta-analysis. Circ Cardiovasc Imaging. 9:e005001

    PubMed  PubMed Central  Google Scholar

  16. Hulten E, Aslam S, Osborne M, Abbasi S, Bittencourt MS, Blankstein R (2016) Cardiac sarcoidosis—state of the art review. Cardiovasc Diagn Ther 6:50–63

    PubMed  PubMed Central  Google Scholar

  17. Iannuzzi MC, Rybicki BA, Teirstein AS (2007) Sarcoidosis. N Engl J Med 357:2153–2165

    CAS  Article  Google Scholar

  18. Japanese Ministry Health and Welfare (2007) Diagnostic standard and guidelines for sarcoidosis. Jpn J Sarcoidosis Granulomatous Disord 27:89–102

    Google Scholar

  19. Kumar S, Barbhaiya C, Nagashima K, Choi E-K, Epstein LM, John RM et al (2015) Ventricular tachycardia in cardiac sarcoidosis. Circ Arrhythm Electrophysiol 8:87–93

    Article  Google Scholar

  20. Li X, Rosenkrans ZT, Wang J, Cai W (2020) PET imaging of macrophages in cardiovascular diseases. Am J Transl Res 12:1491–514. https://pubmed.ncbi.nlm.nih.gov/32509158/

    CAS  PubMed  PubMed Central  Google Scholar

  21. Mehta D, Lubitz SA, Frankel Z, Wisnivesky JP, Einstein AJ, Goldman M et al (2008) Cardiac involvement in patients with sarcoidosis: diagnostic and prognostic value of outpatient testing. Chest 133:1426–1435

    Article  Google Scholar

  22. Ohira H, Tsujino I, Yoshinaga K (2011) (1)(8)F-Fluoro-2-deoxyglucose positron emission tomography in cardiac sarcoidosis. Eur J Nucl Med Mol Imaging 38:1773–1783

    CAS  Article  Google Scholar

  23. Okada DR, Bravo PE, Vita T, Agarwal V, Osborne MT, Taqueti VR et al (2018) Isolated cardiac sarcoidosis: a focused review of an under-recognized entity. J Nucl Cardiol 25:1136–1146

    Article  Google Scholar

  24. Okumura W, Iwasaki T, Toyama T, Iso T, Arai M, Oriuchi N et al (2004) Usefulness of fasting 18F-FDG PET in identification of cardiac sarcoidosis. J Nucl Med 45:1989–1998

    PubMed  Google Scholar

  25. Patel MR, Cawley PJ, Heitner JF, Klem I, Parker MA, Jaroudi WA et al (2009) Detection of myocardial damage in patients with sarcoidosis. Circulation 120:1969–1977

    Article  Google Scholar

  26. Perry A, Vuitch F (1995) Causes of death in patients with sarcoidosis. A morphologic study of 38 autopsies with clinicopathologic correlations. Arch Pathol Lab Med. 119:167–72

    CAS  PubMed  Google Scholar

  27. Puntmann VO, Isted A, Hinojar R, Foote L, Carr-White G, Nagel E (2017) T1 and T2 mapping in recognition of early cardiac involvement in systemic sarcoidosis. Radiology 285:63–72

    Article  Google Scholar

  28. Rischpler C, Nekolla SG, Dregely I, Schwaiger M (2013) Hybrid PET/MR imaging of the heart: potential, initial experiences, and future prospects. J Nucl Med 54:402–415

    CAS  Article  Google Scholar

  29. Robison S, Karur GR, Wald RM, Thavendiranathan P, Crean AM, Hanneman K (2018) Noninvasive hematocrit assessment for cardiovascular magnetic resonance extracellular volume quantification using a point-of-care device and synthetic derivation. J Cardiovasc Magn Reson 20:19

    Article  Google Scholar

  30. Rybicki BA, Major M, Popovich JJ, Maliarik MJ, Iannuzzi MC (1997) Racial differences in sarcoidosis incidence: a 5-year study in a health maintenance organization. Am J Epidemiol 145:234–241

    CAS  Article  Google Scholar

  31. Sanchez Tijmes F, Thavendiranathan P, Udell JA, Seidman MA, Hanneman K (2021) Cardiac MRI assessment of nonischemic myocardial inflammation: state of the art review and update on myocarditis associated with COVID-19 vaccination. Radiol Cardiothorac Imaging 3:6. https://doi.org/10.1148/ryct.210252

    Article  Google Scholar

  32. Schulz-Menger J, Bluemke DA, Bremerich J, Flamm SD, Fogel MA, Friedrich MG et al (2020) Standardized image interpretation and post-processing in cardiovascular magnetic resonance - 2020 update. J Cardiovasc Magn Reson 22:19

    Article  Google Scholar

  33. Skali H, Schulman AR, Dorbala S (2013a) (18)F-FDG PET/CT for the assessment of myocardial sarcoidosis. Curr Cardiol Rep 15:352–362

    Article  Google Scholar

  34. Skali H, Schulman AR, Dorbala S (2013b) 18F-FDG PET/CT for the assessment of myocardial sarcoidosis. Curr Cardiol Rep 15:352–362

    Article  Google Scholar

  35. Slart RHJA, Glaudemans AWJM, Gheysens O, Lubberink M, Kero T, Dweck MR et al (2021) Procedural recommendations of cardiac PET/CT imaging: standardization in inflammatory-, infective-, infiltrative-, and innervation (4Is)-related cardiovascular diseases: a joint collaboration of the EACVI and the EANM. Eur J Nucl Med Mol Imaging 48:1016–1039

    Article  Google Scholar

  36. Smedema J-P, Snoep G, van Kroonenburgh MPG, van Geuns R-J, Dassen WRM, Gorgels APM et al (2005) Evaluation of the accuracy of gadolinium-enhanced cardiovascular magnetic resonance in the diagnosis of cardiac sarcoidosis. J Am Coll Cardiol 45:1683–1690

    Article  Google Scholar

  37. Vignaux O (2005) Cardiac sarcoidosis: spectrum of MRI features. Am J Roentgenol 184:249–254

    Article  Google Scholar

  38. Wicks EC, Menezes LJ, Barnes A, Mohiddin SA, Sekhri N, Porter JC et al (2018) Diagnostic accuracy and prognostic value of simultaneous hybrid 18F-fluorodeoxyglucose positron emission tomography/magnetic resonance imaging in cardiac sarcoidosis. Eur Heart J Cardiovasc Imaging 19:757–767

    Article  Google Scholar

  39. Williams G, Kolodny GM (2008) Suppression of myocardial 18F-FDG uptake by preparing patients with a high-fat, low-carbohydrate diet. Am J Roentgenol 190:W151–W156

    Article  Google Scholar

  40. Youssef G, Leung E, Mylonas I, Nery P, Williams K, Wisenberg G et al (2012) The use of 18F-FDG PET in the diagnosis of cardiac sarcoidosis: a systematic review and metaanalysis including the Ontario experience. J Nucl Med 53:241–248

    CAS  Article  Google Scholar

Download references

Funding

The study was funded by Peter Munk Cardiac Centre Innovation Fund and Academic Incentive Fund Grant, Toronto Joint Department of Medical Imaging.

Author information

Affiliations

Authors

Contributions

All authors read and approved the final manuscript.

Corresponding author

Correspondence to Kate Hanneman.

Ethics declarations

Ethics approval and consent to participate

The study was approved by the hospital IRB, and written informed consent was obtained from all participants.

Consent for publication

Written informed consent was obtained from all participants.

Competing interests

Author KH has received a speaker honorarium from Sanofi Genzyme, Amicus and Medscape.
